Kerf Audio Analyse 1 for REAPER
Analyse 1
A free LUFS meter and master-bus analyser, docked across the top of REAPER.
Free Beta REAPER extension

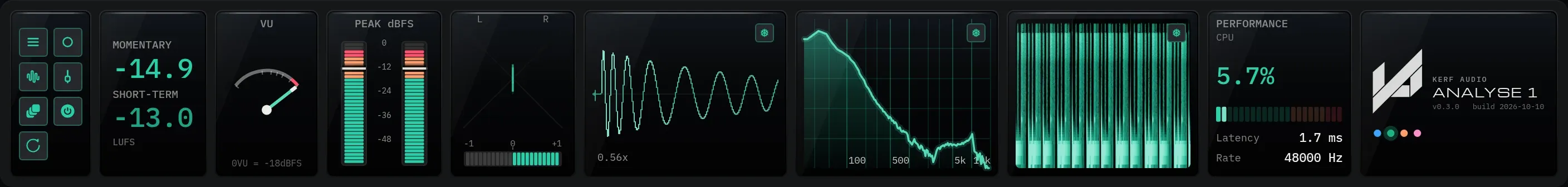

The Analyse 1 strip measuring a drum break, from the tools column on the left to the Brand module on the right.
LUFS · VU · Peak · Goniometer · Scope · Spectrum · Spectrogram · Freeze
| Product | Analyse 1 |
| Version | 0.5.0 beta |
| Platforms | Linux, macOS coming soon |
In this manual
Section titled “In this manual”- The strip
- Tools, monitoring and freeze
- Loudness and level
- Stereo, waveform and spectrum
- Spectrogram, Performance and Brand
- Troubleshooting
- Install and licence
Welcome
Section titled “Welcome”See everything leaving your master bus. Loudness, VU, peak, phase, the waveform and the spectrum, all live in one strip docked across the top of REAPER.
There is no plugin to insert and nothing to arm. Analyse 1 listens at the very end of the chain, after the master bus and its effects, so whatever you hear is what you see. Open the panel and it starts working.
What it runs on
Section titled “What it runs on”| Format | REAPER extension |
| Host | REAPER 7.8 or later, 64-bit |
| Linux | x86_64 with glibc 2.35 or later: Ubuntu 22.04, Debian 12, Fedora 36 or newer, or any current rolling distribution |
| macOS | macOS 26 Tahoe or later: coming soon |
| Version | 0.5.0, 11 October 2026 |
